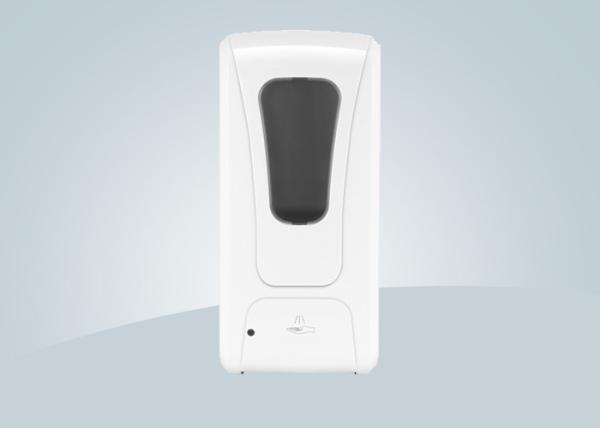

Infrared Sensor 1000ml Touch Free Auto Alcohol Gel Dispensers
Specification
| Product name | Wall Mount Automatic Touch Free Hand Sanitizer Dispenser |
| Capacity | 1000ml |
| Pump type | Spray, foam, Liquid |
| Material | ABS |
| Bottle | refillable bottles |
| Support | AC/DC power |
| Installation | Wall mounted |
| Application | Bathroom Kitchen Hotel Hospital Restaurant |
| Color | White or Customized |
| Operation | Automatic, hands free operation |
| Logo Print | Customized |
| N.W | 0.9KG |
| G.W | 1KG |
| Box Size | 13*11.5*27CM |
| Packing | 15pcs per carton |
| Carton Size | 59.5*41*29CM |
Features:
1. Smart intelligent electronics skill being adopted ensure sits
high performance. No contact, to effectively prevent
cross-infection of bacteria, prevent human damage & waste.
2. Because of advanced pump fit to all kinds of liquid can be
applicable, like shampoo, liquid soap, sanitizer, etc.
3. Power consumption is very low, battery life reaches more than
100,000 cycles.
4. Flashing LED indicates low battery.
5. There is a device for protect from stealing off.
6. Primary application: Public Place, school, commercial center,
health care, institutions, hospitals, office, hotel, food factory &
etc.
Installation
Do not install in areas or direct sunlight, make sure there are not
white surface or any other strong reflectors within 30cm below.
Mount the dispenser to the wall by using the enclosed screws and
wall plugs. Make sure the wall surface is cleaned and in good
condition to ensure proper mating of the dispenser to the wall.
Install six (6) Alkaline “C”
Cell batteries, 1.5V into the battery chamber which is located on
the back of control box, replace the control box by sliding down.
Must be flush to bottom.
Operation
Refillable bottle: To fill dispenser, remove the lid and fill with
liquid or gel.
Disposable bag: To fill dispenser, fill with liquid or gel through
the hole which is on the bag, then insert nozzle. Please fill the
nozzle completely with liquid or gel (Press the nozzle & make air
discharged) before installing the new bag in the dispenser to work,
the drop or spray function could be more efficiency.
Open front of box to install liquid bag. Pull the valve hose out
and down, place the liquid bag in box on top of the control box,
place the hose in the channel, make sure the upper collar is
beneath the upper notch and the lower collar fits into the lower
notch.
Dispenses liquid or gel of viscosities ranging from 1,000-5,000
cps. To activate the dispenser, place hand under spout for
approximately one second. Sensing range comes at factory setting of
4-8cm. The sensing range set by the factory is recommended for
optimal performance. Window indicates when fill is required. The
locked, hinged housing opens for re-filling only with the special
key provided. Requires six (6) Alkaline “C” Cell batteries, 1.5V
(not included). Green indicator light signals “IN USE”. Flashing
red light signals “LOW BATTERY”. CE certified.
FAQ
Q1.: Can you produce the hand sanitizer dispenser as per our
design?
A1.: Yes, both OEM & ODM service are available.
Q2.: Can the soap dispenser be printed with our logo?
A2.: yes, for sure, just send us the design & advise the pantone
number, thanks.
Q3.: Can you send me the sample to see the product quality?
A3.: Yes, of course.
Q4.: Are you a cleaning products manufacturer or trade company?
A4.: We are manufacturer, and have specialized in hand hygiene
products for more than 10 years.
Q5.: Can I place a trial order if the quantity is less than MOQ?
A5: For the first trial order, yes, we can make an exception for
you, if there's any assistance needed on the marketing, pls do feel
free to us at any time.
